Kenwood Excelon DMX908S

Description

Product highlights:

General features:

• digital multimedia player with AM/FM tuner
• plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)

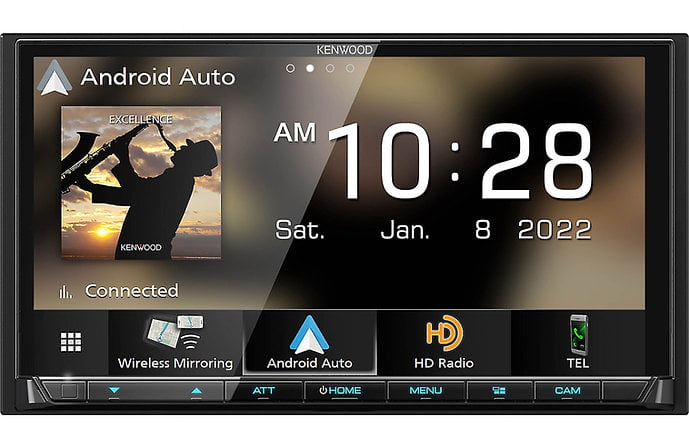

• 6.95″ capacitive touchscreen display
• HD Radio tuner built-in
• electronic viewing angle display adjustment (display does not physically move)
• fits double-DIN (4″ tall) dash openings

Smartphone features:

• wired and wireless Android Auto compatible
  • compatible with Google Assistant voice control when using Android Auto
• wired and wireless Apple CarPlay compatible
  • Siri voice control for select iPhones
• wired mirroring for iPhone and select Android devices via HDMI (adapters sold separately)
• wireless mirroring for select Android devices
• built-in Bluetooth with dual phone connection for hands-free calling and music streaming
• rapid Android charging via USB port

Audio/visual features:

• 13-band graphic EQ
• time alignment
• Drive EQ and digital signal processing
• 3-way crossover

Expandability:

• compatible with SiriusXM satellite radio tuner

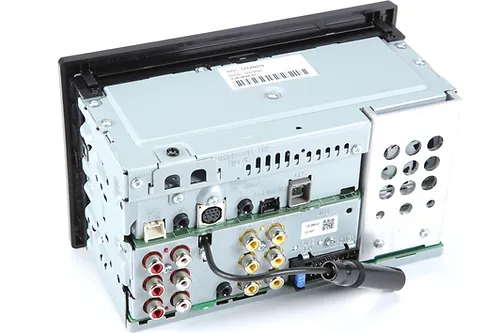

• inputs: rear USB-C input (USB-C to USB-A adapter included), four camera inputs, rear analog A/V input (can be converted to 5th cam input), control input for the Kenwood DRV-N520 dash cam
• outputs: rear video output (RCA), 6-channel preamp outputs (5-volt front, rear, sub)

Other information:

• wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
• built-in amplifier (22 watts RMS/50 peak x 4 channels)

• works with iDatalink Maestro RR or RR2 modules
  • retains factory features in a wide selection of vehicles
  • displays engine performance data on touchscreen

• warranty: 2 years
• Our 60-day money-back guarantee
• MFR # DMX908S

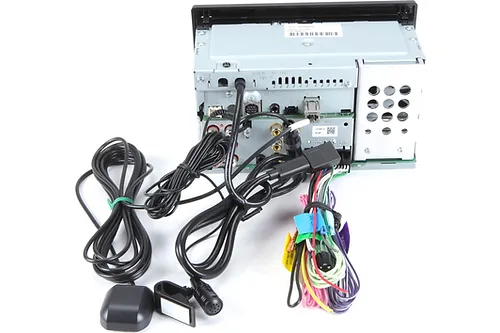

What’s in the box:

Kenwood Excelon DMX908S owner’s manual

• Digital multimedia receiver w/ integrated 6.75″ monitor (15A fuse)
• Wiring harness
• Mounting sleeve (pre-installed)
• Trim-ring
• USB-C to USB-A adapter
• 40″ USB-C extension cable
• GPS antenna (attached 11.5′ cable terminated by a proprietaery connector)
• Microphone w/ bracket (attached 10′ cable terminated by a right-angle mono 3.5mm connector)
• Self-adhesive pad
• 6 Pan-head ISO-mount screws (M5x8mm)
• 6 Flat-head ISO-mount screws (M5x8mm)
• USB/HDMI connector bracket (pre-installed)
• 2 Removal tools
• Quick Start Guide
• Warranty Information
