Kenwood Excelon Reference DMX1057XR

Description

Product highlights:

General features:

• digital multimedia receiver with AM/FM tuner

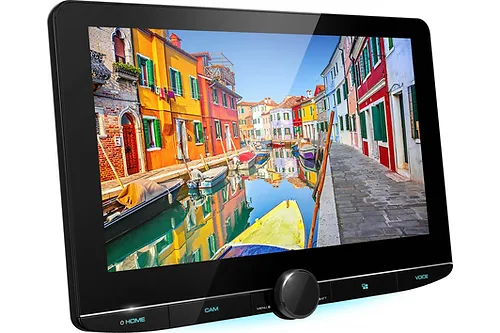

• 10.1″ HD capacitive touchscreen display
  • AAS display technology for wider viewing angle
  • before final installation, depth and height of the display can be adjusted to provide dash vent and control access
• Wi-Fi certified
• Waze-ready with Apple CarPlay or Android Auto
• customizable display background and widget controls
• ambient lighting and multi-function volume knob controls
• plays high-res FLAC, WAV, and DSD files on USB drives
• built-in HD Radio tuner
• fits double-DIN dash openings
• Bluetooth built-in for hands-free calling and audio streaming
  • built-in LDAC for high-res wireless audio streaming with select Android phones

Smartphone features:

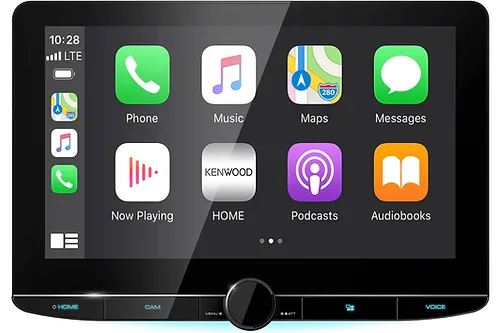

• compatible with wireless or wired Apple CarPlay or Android Auto
• wireless (Miracast) and wired (HDMI) mirroring for Android

Audio/video features:

• plays USB memory devices
• 13-band parametric equalizer with digital time alignment
• 3-way crossover mode (runs highs, mids, and lows)
• Supreme setting improves the digital sound for all music sources
• Stage EQ compensates for low speaker positions
• DriveEQ boosts specific frequencies to compensate for road noise
• subwoofer level and phase controls

Expandability:

• compatible with SiriusXM satellite radio tuner
• direct connection and control with Kenwood’s DRV-N520 Drive Recorder dash cam

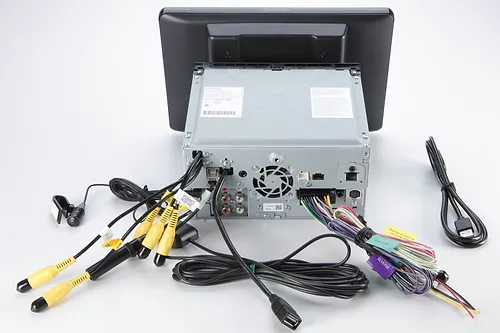

• inputs: rear USB input, HDMI input, rear A/V input (composite RCA video and 3.5mm audio), four camera inputs (including 2 high-def inputs and DRV-N520 input)
• outputs: rear A/V output, 6-channel preamp outputs (5-volt front, rear, subwoofer)

Other info:

• Important note — Monitor dimensions are 10.313″ x 7.125″. Before ordering, check for possible interference with your dash.
• wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
• built-in internal amp (22 watts RMS/50 peak x 4 channels)
• works with iDataLink Maestro modules
  • retains factory features in a wide selection of vehicles
  • displays engine performance and other vehicle data on touchscreen
  • K40/Escort radar detector-ready
• compatible with most factory steering wheel audio controls (adapter required)
• warranty: 2 years
• Our 60-day money-back guarantee
• MFR # DMX1057XR

What’s in the box:

Kenwood Excelon Reference DMX1057XR owner’s manual

• 10.1″ Touchscreen monitor
• Source unit (15A fuse)
• Wiring harness
• 39″ USB extension cable
• GPS antenna (attached 11.5′ cable terminated by a proprietary connector)
• Microphone w/ bracket (attached 10′ cable terminated by a right-angle mono 3.5mm connector)
• Self-adhesive mounting pad
• Large plastic bracket
• 2 Small plastic brackets
• 2 Metal brackets
• 2 Machine screws
• 6 Hex-head screws
• 6 Pan-head ISO-mount screws
• 6 Flat-head ISO-mount screws
• Quick Start Guide
• “CAUTION” note
• Warranty Card
